DCDC4V-18V降压12V、5V、3.3V/2A同步降压恒压芯片

DC4V-18V降压12V2A同步电源芯片

DC4V-18V降压5V2A同步稳压器

DC4V-18V降压3.3V2A同步恒压IC

General Description

The SL1588 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to achieve a 3A peak output current over a wide input supply range,

with excellent load and line regulation.

The SL1588 requires a minimal number of readily available, external components and is available in a space saving

SOT23-6 package.

Features

• Wide 4V to 18V Operating Input Range

• 2A Continuous Output Current

• 500kHz Switching Frequency

• Short Protection with Hiccup-Mode

• Built-in Over Current Limit

• Built-in Over Voltage Protection

• Internal Power-Save Mode (PFM/PWM)

• Internal Soft-Start

• Output Adjustable from 0.8V

• No Schottky Diode Required

• Integrated internal compensation

• Thermal Shutdown

• Available in SOT23-6 Package

• -40°C to +85°C Temperature Range

Applications

• Digital Set-top Box (STB)

• Tablet Personal Computer (Pad)

• Flat-Panel Television and Monitor

• Wi-Fi Router / AP

• Digital Video Recorder (DVR)

• Portable Media Player (PMP)

• Cable Modem / XDSL

• General Purposes

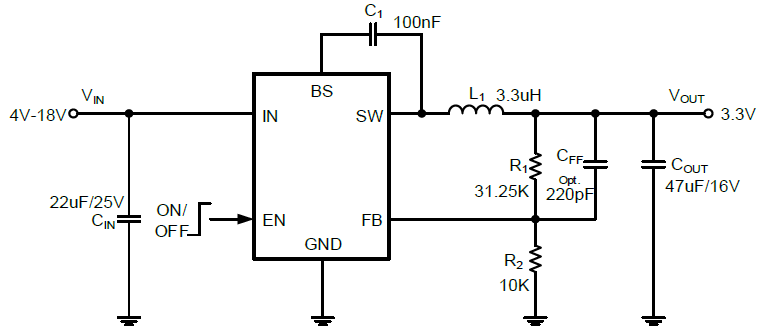

Typical Application Circuit
